Exact Comms Hub Wi-Fi configuration

Exact Comms Hub Wi-Fi configuration

Info
Wi-Fi Gateway / Hub connection set-up instructions - How to pair your Gateway to your Wi-Fi

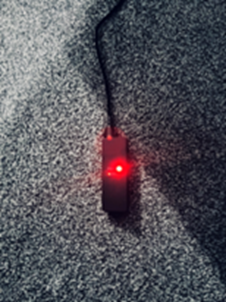

1. Plug the Wi-Fi gateway in using the mini USB cable and USB power supply included,
ensuring that the red indicator light remains illuminated throughout the process.

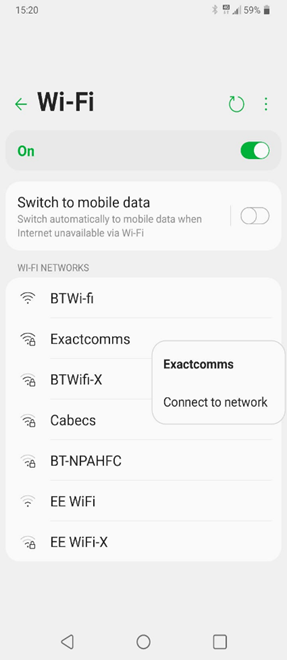

2. Access the Wi-Fi menu on your smartphone to view all available Wi-Fi networks.
3. Select the network named “Exactcomms”

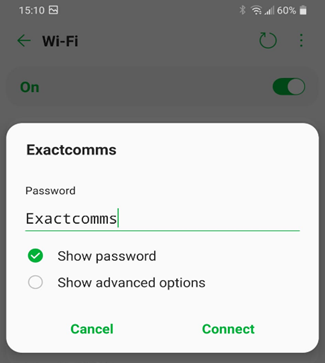

4. Enter the password as Exactcomms and then tap “Connect”.


5. Ensure that you are successfully connected before moving on to the next step.

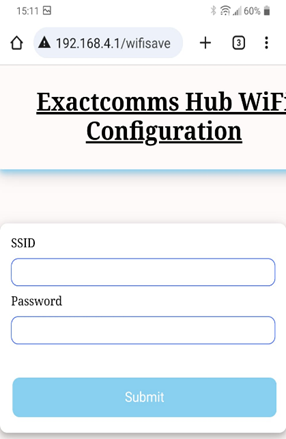

6. Open your smartphone's web browser and enter the following URL:   192.168.4.1/wifisave, press “Enter” to access the Exactcomms Wi-Fi Gateway configuration page.

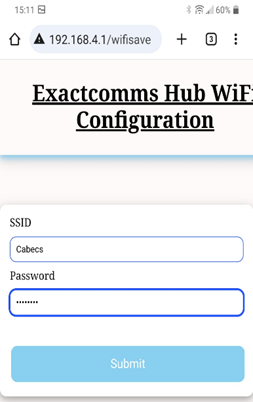

7. Enter the SSID and password for the network to which you want your gateway to connect. then click on “Submit"

Notes
This is the Wi-Fi credentials of your local Wi-Fi or Dongle provided by us.

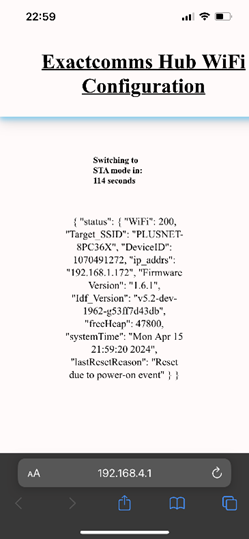

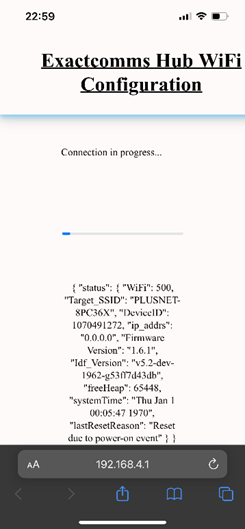

8. After clicking 'Submit,' you will be directed to a page displaying the SSID that the gateway is successfully connected to, along with the setup time and date.



9. Once the setup is finished, disconnect your smartphone from the gateway in your phone's Wi-Fi settings and power the gateway off and on to complete the setup.
